CREA produces e-paper signage (signs) based on E Ink’s e-paper modules.
+++ Sustainable digital signage with ultra low-power use / no-power use
+++ Standalone operation
+++ Eye-friendly high-resolution e-paper displays
+++ Many ports for loading content (HDMI, USB, SD card, LAN)
+++ Native Content Management Software for use on PC, Mac, smartphones, and online
+++ Android-based OS means easy integration into existing signage networks
Quick links:
EPS (monochrome e-paper signage up to 42″)
<NEW> EPS “A-Color” (beautiful and high resolution with 32,000 colors)
2W E-Paper
32", 42"-
Super low power consumption*
-
Eye-friendly, paperlike display
-
High visibility in direct sunlight
-
Not for moving images
80W LED Display
42"-
High power consumption
-
Emitted light strains the eye
-
Low visibility in direct sunlight
-
Usable for moving images
120W LCD Display
42"-
High power consumption
-
Emitted light strains the eye
-
Low visibility in direct sunlight
-
Usable for moving images
*price: 1KWh = 36 Cent
*calculation: 1 display change per hour, in use 18 hours a day
The Products

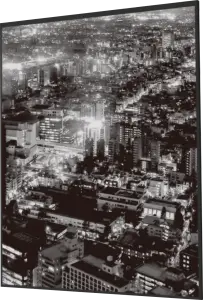

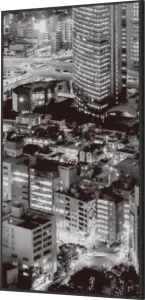

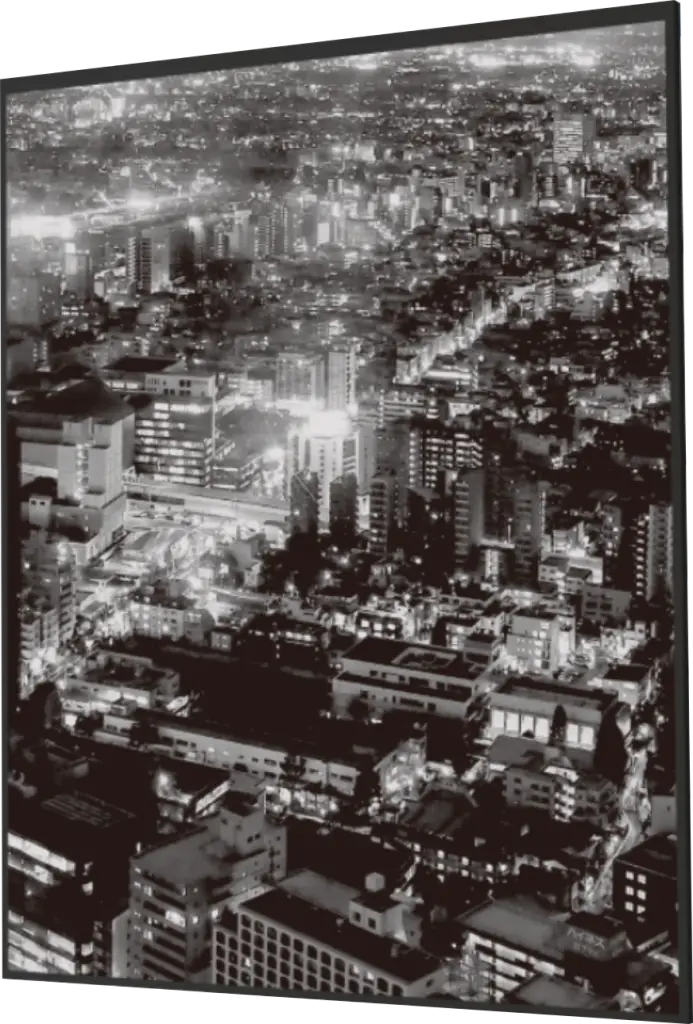

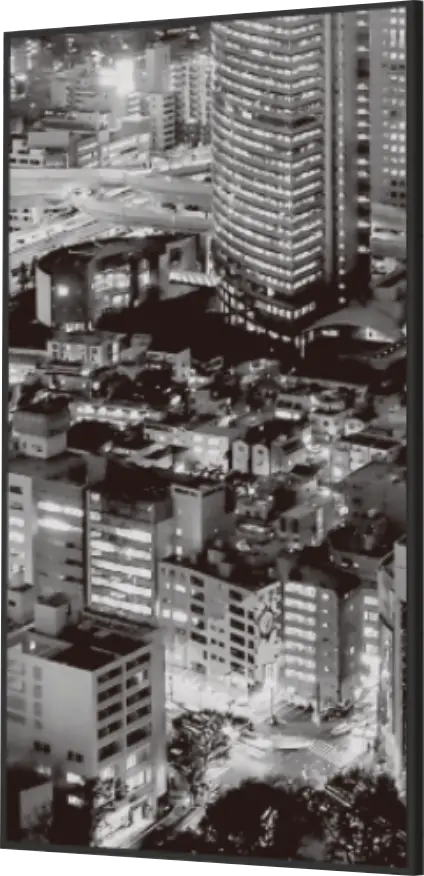

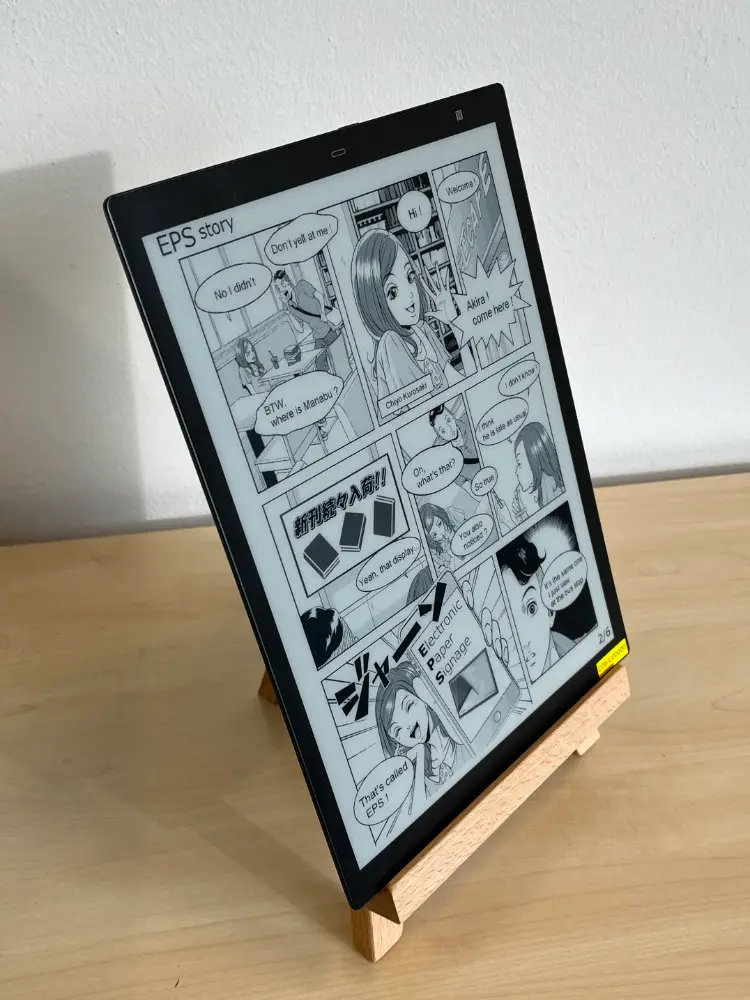

Monochrome Electronic Paper Signage "EPS"
EPS provides large signage at 31.2” and 42” sizes!

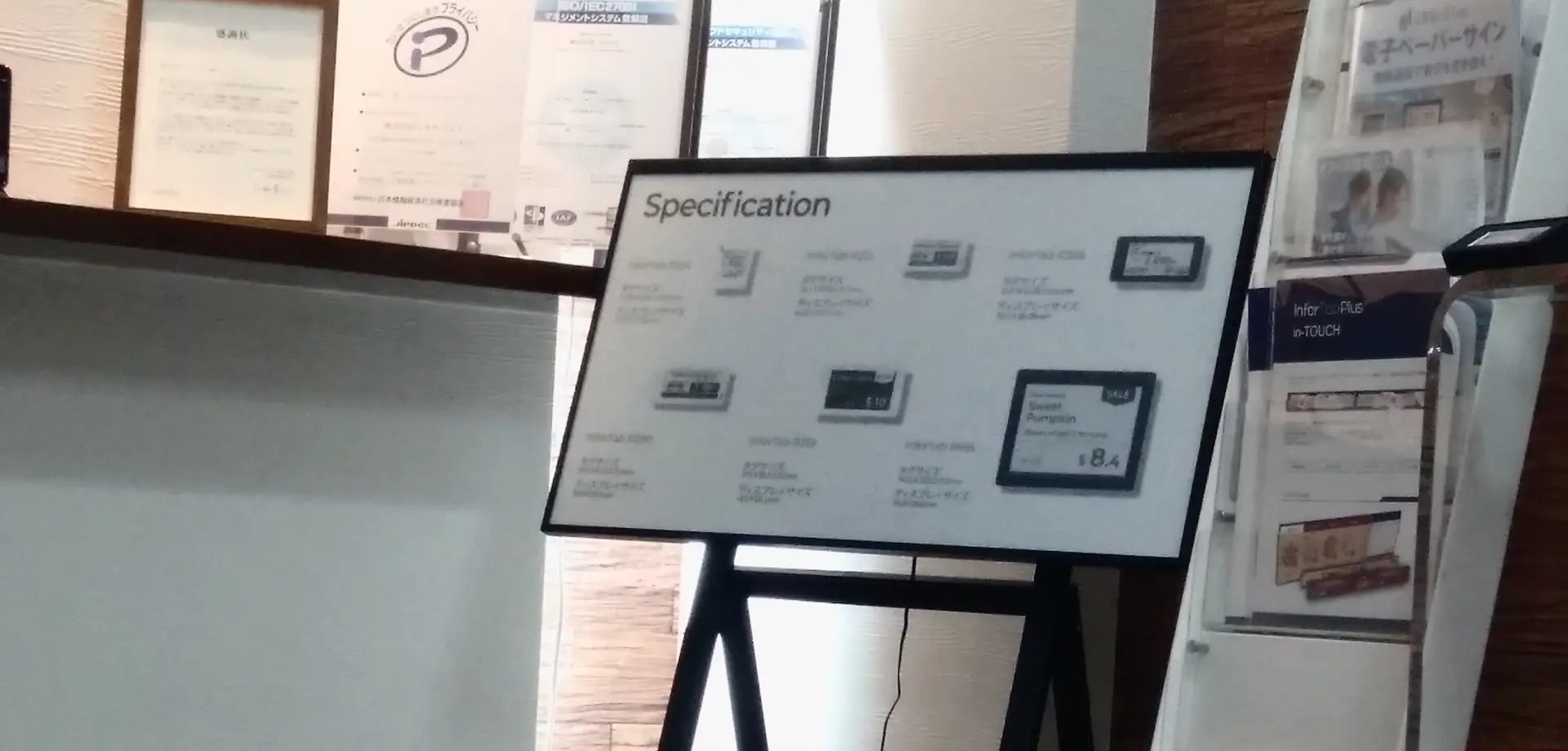

The EPS can be used in standalone mode or they can be integrated into an existing signage network.
Features:
- Beautiful high-resolution display (42″ model has 3K resolution) in 16 bit grayscale
- Eye friendly
- 180° viewing angle
- Ultra-low power consumption during slide-shows (2W during stand-by, 7W during display update)
- Standalone operation
- Thin & lightweight (42″ model: 7.5 kg, 32″ model: 4.5 kg)
- Ports: HDMI, USB-A, USB micro-B, LAN, SD card slot
- 32GB of internal storage
- Native content management apps that can be used on PC, Mac, and smartphones
- VESA mount compatible

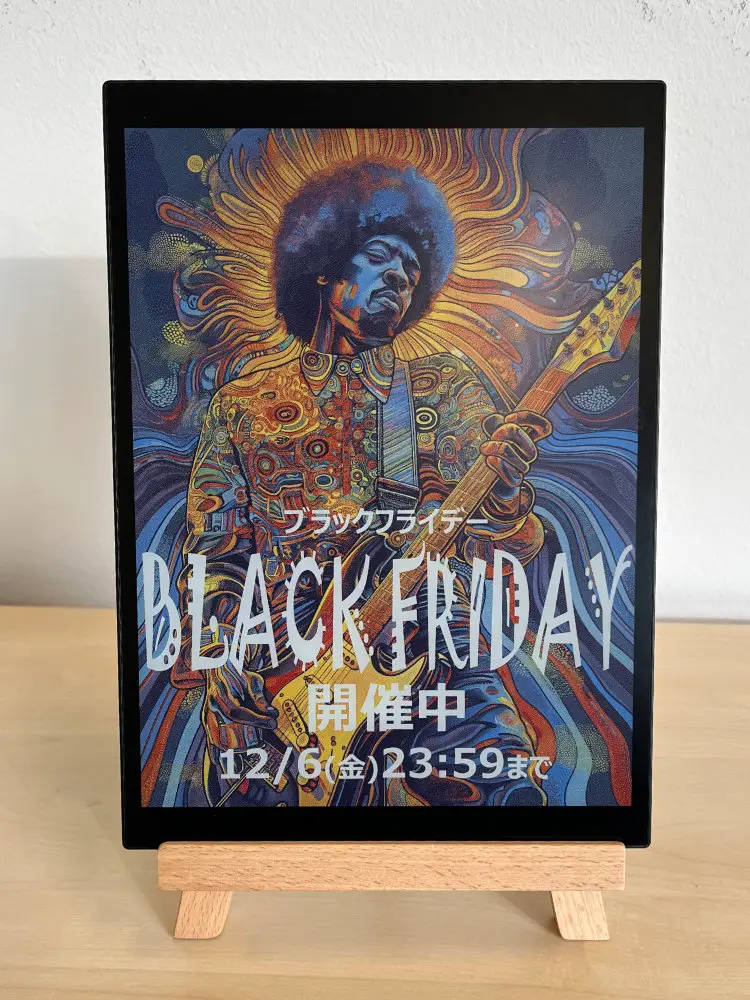

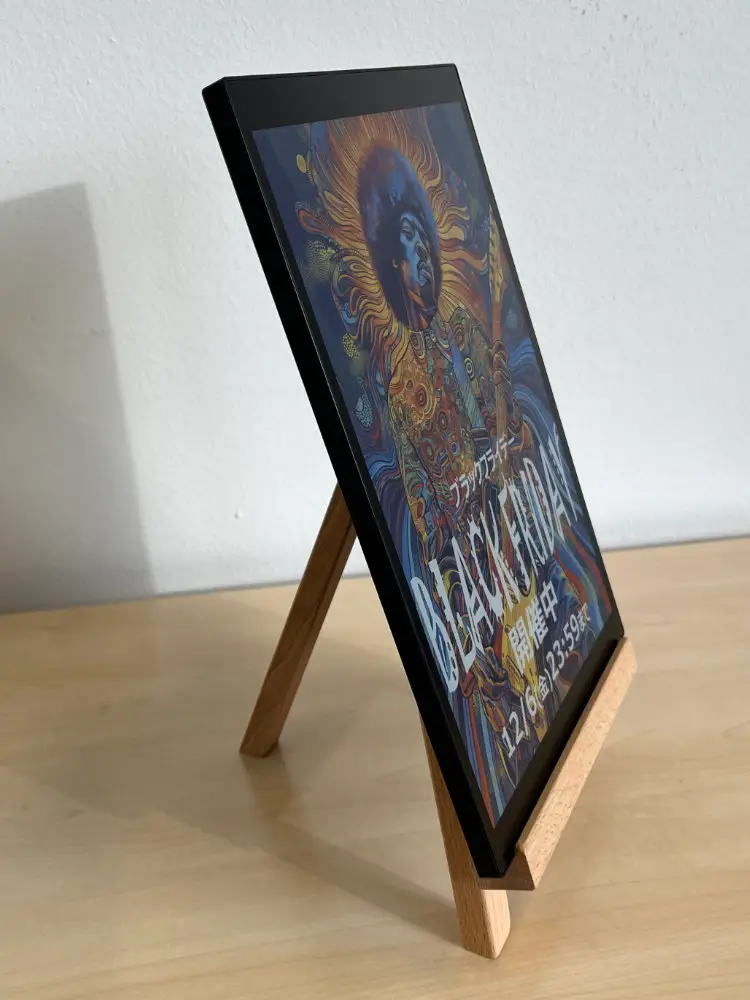

EPS "A-Color"
The A-Color EPS is a high quality, full color reflective display based on E Ink’s Advanced Color ePaper (ACeP™). In the ACeP system, the ink can produce full color at every pixel, without the use of a color filter array (CFA).
ACeP achieves a full color gamut, including all eight primary colors, using only colored pigments. The display utilizes a single layer of electrophoretic fluid which is controlled using voltages compatible with commercial TFT backplanes. The fluid can be incorporated into either microcapsule or Microcup® structures.
The richness of the colors is achieved by having all the colored pigments in every picture element (pixel) rather than the side-by-side pixel colors achieved with a CFA. This eliminates the light attenuation, which can be quite significant.
What’s great about it:
- Ultra-low or no-power consumption
- 32,000 colors
Eye-friendly display (no light emitted)
High contrast
Disadvantages compared to other models:
- Smaller operating temperature range (15 to 35 °C)
- Colors are a bit muted
- Slow display update (when content changes, display flickers for a few seconds)
Applications:
The A-Color EPS is ideal for static displays with high-quality color contents.
| Display | E-paper type | ACeP (Advanced Color E-Paper) (by E Ink) |
| Display mode | Reflective | |
| Resolution | 3200 x 1800 pixels | |
| Aspect ratio | 16:9 | |
| Number of colors | 32,000 colors | |
| Active display area | 25.3 inch (560(H) x 315(V) mm) | |
| Ports | Network | 802.11 ac/a/b/g/n WiFi + BT 5.0 + RJ45 (LAN) |
| USB | USB-C (power) | |
| External media | Micro SD |
EPS "E-Color"
The E-Color EPS uses Spectra 3100 multi-pigment electronic ink by E Ink. It offers the same high-contrast, sunlight readable, low-power performance attributes of the monochrome EPS – with a pop of color.
Color reproduction in the E-Color EPS
The E-Color EPS utilizes black, white, red, and yellow particles to offer vibrant color rich content.
Unlike earlier generations, the Spectra 3100 e-paper has an improved update time, and an expanded temperature range for red and yellow states, to satisfy retailers’ needs to operate ESL tags in various environments within their stores.
What’s great about it:
- Ultra-low or no-power consumption
Eye-friendly display (no light emitted)
4-color display with popping colors Yellow, Red, Black, and White
Disadvantages compared to other models:
- Only 4 colors means no way to display other colors such as green, blue, or violet
- Slow display update (when content changes, display flickers for a few seconds)
Applications:
The E-Color EPS is ideal for signs that need to pop and draw attention, for example SALE signs in a retail environment or electronic shelf tag labels.
| Display | E-paper type | Spectra 3100 (E5) (by E Ink) |
| Display mode | Reflective | |
| Resolution | 3200 x 1800 pixels | |
| Aspect ratio | 16:9 | |
| Number of colors | 4 colors (black, white, red, yellow) | |
| Active display area | 25.3 inch (560(H) x 315(V) mm) | |
| Ports | Network | 802.11 ac/a/b/g/n WiFi + BT 5.0 + RJ45 (LAN) |
| USB | USB Type C (OTG) | |
| Audio output | Earphone jack | |
| External media | SD |
